Automatic spring roll machine / spring roll maker

Spring roll machine
Spring roll machine

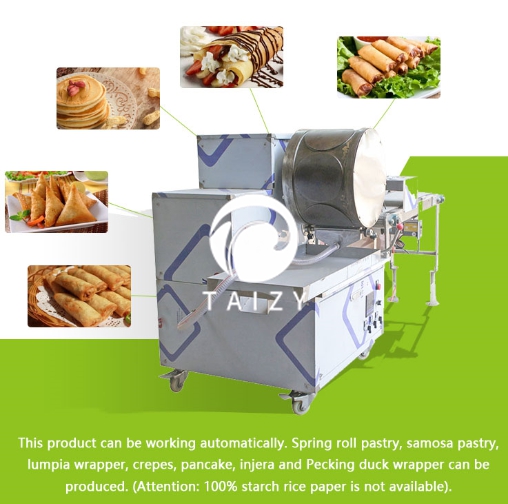

Spring roll machine is specialized for making a lot of sheet pastas such as spring rolls, pancakes, egg cake, etc. Its thickness is adjustable, that is, 0.3-1.2mm, and you can customize it according to your needs. Spring rolls are popular in the world, especially in Europe, America, South Korea, Japan etc., so spring rolls are very common food on the street and the stuffing includes many ingredients. It is often mixed with other materials to make very delicious food that is favored by the public, and you also can mix with some sauce that will taste better. However, how does the machine work? What’s the structure and advantage of it? What should I do if there is anything wrong? let’s have a look of the spring roll machine today.



spring roll machine application
spring roll machine application

First

What’s the structure of the spring roll machine?

Spring roll machine is a device that uses flour mixed with water to make a round cake. It consists of a frame, pneumatic components, electrical components, heating elements and shaped abrasives which mainly used for the baking of duck cake, egg cake and other varieties of cakes.

The spring wrappers can set the heating temperature and heating time according to different requirements and can complete the pressing and heating work within the set time. The mold can be replaced as well to make different thicknesses and shapes of the cake.



spring roller
spring roller

Second

Advantage of the spring roll maker



1. The shape of the final spring rolls can keep intact. More importantly, our spring wrappers has no noise and pollution when working. This spring roll maker also has a movable door which makes the machine easier and simpler to clean and maintain.

2. It can better protect flour when producing spring rolls, which improves the taste of spring rolls.

3. Spring wrappers adopt the control cabinet to master the operation. When the spring rolls are produced, the proportion can be adjusted according to the different requirements, and it is very easy to adjust.

4. The thickness of size of spring rolls is adjustable, and it ranges from 0.3 to 1.2mm.

5. The special design of spring roll machine towards conveying screen and chain is beneficial for heat dissipation.

Get quotation about this machine
spring roll maker
spring roll maker





Third

The common malfunction and related solution of spring roll machine

Even our spring roll machine is equipped with high quality, it may occur some malfunctions. How to deal with them? I will list the common malfunctions and solutions for you.

1. The spring rolls machine does not work

Firstly, you shall check whether the power supply is connected correctly and whether the switch of each part is closed. What’s more, check the electrical device is wired and plugged or not.

2. The spring roll wrappers suddenly stop rotating.

Solution: please press the red button or the green button on the inverter once.

3. If it cannot operate normally.

Solution: please turn off the power light. Then, turn on the power to make the spring roll wrappers run. If it still does not work, replace the inverter.

4. The main engine cannot be adjusted.

Solution: check if the speed control button is damaged, reinforcing the top of the speed control knob or replacing the speed control button.

5. The mesh belt cannot be adjusted

Solution: check if the transmission is damaged or the motor is burnt.

6. Leakage circuit breaker tip

Solution: check if the heating plate is leaking, whether the connecting wire and copper slip ring are leaking, and if they are leakage, it is recommended to replace it.

7. The heating tube is not heated or intermittently heated.

Solution: a. check whether the leakage control table, heating plate or the hot spot are damaged. If yes, replace them in time.

b.Check whether the external power supply or circuit breaker has any problem, whether the contactor is damaged by electric shock.

Spring roll making machine
Spring roll making machine

Fourth

Precautions of spring roll maker

  1. Spring roll machines should be installed on stable ground.
  2. The heating must be parallel to the auxiliary line during installation.
  3. Turn on the electric cover to make the electrical appliances.
  4. After the work is finished, the spring roll wrappers must be cleaned with water.
  5. you must use the ground wire before use.

Fifth

Working principle of the spring roll machine:

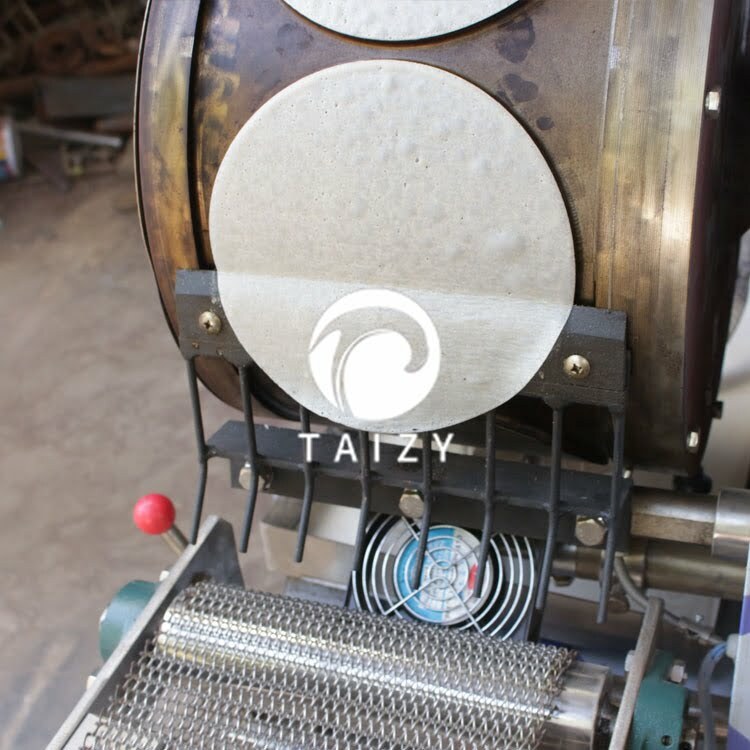

The heating temperature and heating time are set according to demand. The heating temperature will be displayed on the temperature control table. When the temperature reaches the set temperature, the heating will stop automatically. As long as the quantitative flour mixed with water is put into the container and the machine is started, the hydraulic device will press the upper mold and press the dough into a cake, which is also a major feature of the spring roll machine. The high-performance features make the spring roll more delicious. After forming, there are fans to cool the spring rolls.

Spring roll machine
spring roll maker

Sixth

Advantage of the spring roll maker

1. The shape of the spring roll maker is more beautiful. More importantly, this as no noise when working. This spring roll maker also has a movable door which makes the machine easier and simpler to clean and maintain.

2. It can better protect flour when producing spring rolls, which improves the taste of spring rolls.

3. The control aspect adopts the control cabinet to control the operation. When the spring rolls are produced, the proportion can be adjusted according to the different requirements, and it is very easy to adjust.

4. The thickness of size of spring rolls are adjustable, and it ranges from 0.3 to 1.2mm.

5. The special design of conveying screen and chain is beneficial for heat dissipation.

spring roll maker
spring roll maker

Seven

The successful case

We have an Indonesia customer named Donny Swidianto who opens the spring rolls store. He wants to make a diameter of 180mm round spring roll machine and need to gas heating. We customized the diameter mold for him. At first, he was a bit worried that the machine packaging size was too large and the shipping cost would be a bit expensive. But when we tell him that the main unit and the conveyor belt were packaged separately, the packaging would not take up too much space. The customer made an order immediately and he is very satisfied with the machine working effect when we send the text video to him. After he buys our machine, a growing number of customers go there to eat fresh spring rolls, because our machine improves his working efficiency. What’s more, the ingredients he puts into the spring rolls are different from others, and there are various tastes spring rolls with the stuffing of chicken, shrimp or peanut.

pls click the following link to view more

Other successful cases

the wooden case of spring roll machine
the wooden case of spring roll machine



Model TZ-3620 TZ-5029 TZ-8045 TZ-12060
Dia. of heating Cylinder 360mm 500mm 800mm 1200mm
Size of machine 4.3*0.8*1.35m 4.7*0.95*1.58m 5.2*1*1.5m 6.2*1.15*2m
Electric Power 6.0KW or gas 13.2KW or gas 38kw or gas 59kw or gas
Host Power 0.75KW 0.75KW 0.75KW 0.75KW
Power Cutter 0.55kw 0.55KW 0.55KW 0.55KW
Belt power 0.18kw 0.55KW 0.55KW 0.55KW
N. W. 320kg 800kg 1000Kg 1200Kg
Size of the sheet ( Max.) round:180mm round:280mm round:430mm round: 500mm
rectangular:200mm rectangular:290mm rectangular:450mm rectangular:520mm
Thickness of the sheet 0.3-1.0mm 0.3-1.0mm 0.3-1.0mm 0.3-1.0mm
Production capacity 500-1000pcs/h 1000-1600pcs/h 3500pcs/h 4500-7000p/h

Eighth

FAQ

  1. Can I adjust the thickness of spring rolls?

Yes, it is adjustable, 0.3-1.2mm.

  1. Can I make spring rolls with double lines?

Yes, TZ-8045 TZ-12060, both types can make it.

  1. Can I customize the size of spring rolls?

Yes, it can be customized, and it has round and square shape.

  1. How to heat the spring roll machine?

It is better to fuel gas to he

5. Will the final spring rolls keep intact?

No, all the spring rolls can keep intact.

6. Is the surface of spring roll smooth?

Yes, of course.
