Vegetable and fruit dicing machine / tomato dicer machine

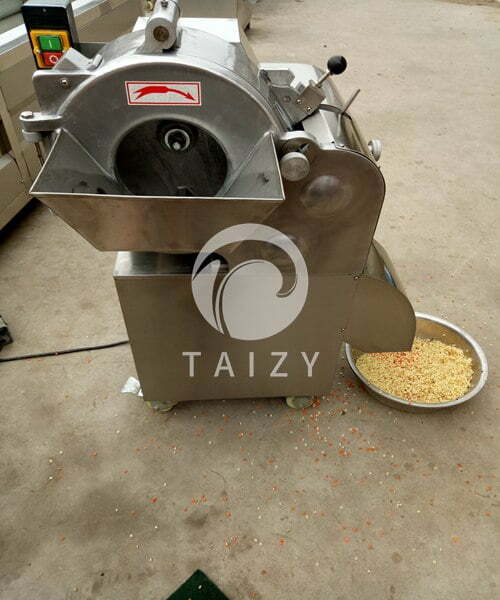

vegetable and fruits dicing machine
vegetable and fruits dicing machine

The vegetable dicing machine is applicable to quick-frozen vegetables, pickled food, and root vegetables processing line, cutting them into cube or cuboid dices. It is mainly comprised of a pedestal, enclosure, cutting plate with vertical knife and chipping knife, transverse cutting edge, the horizontal cutting knife, the transmission system, and the electrical control system.

The dicing machine is suitable for vegetables and fruits such as potato, carrot, onion, mushroom, pepper, apple, hum, and other variety of root vegetables.So it is the ideal and indispensable cutting equipment in the vegetable processing industry. The dicing size and thickness are adjustable. This commercial dicer machine widely applies to the food processing factory, the catering industry, dining hall, and vegetable distribution center, etc.

Main parameter of vegetable and fruits dicing machine

Capacity:600kg/h

Dicing size:4,5,6,8,10,12,15mm cubes or other customized size

Power:0.75kw

Size:710*660*1085mm

Weight:100kg

Vegetable and fruits dicing machine working video

The working principle of the dicer machine

  1. The rotary cutting table of this tomato dicer drives raw materials to rotate at a high speed.
  2. With the centrifugal force generated by the high-speed spinning, the vegetable dicing machine cuts root vegetables or fruits into pieces by the vertical knife and then cuts slices into strips by disc cutting knives.
  3. The sliced or chipped materials are sent to the transverse cutting edge so as to be cut into required shapes, for instance, cube or cuboid.
  4. The thickness of chipped or dicing sizes can be changed by adjusting the clearance between the cutting blade and rotary plate, while the shape of cut material is changed by altering the disc cutters and the transverse cutters.

The advantage of the vegetable dicing machine

  1. Versatility, one dicing machine can cut a variety of root vegetables into dices or chips.
  2. Regular size, clean, and net cutting surface makes the perfect finished product
  3. ease of operation; high efficiency; optimized hygienic design including machine enclosure,
  4. Cutting knife all are made of 304 stainless steel and bears long service life and low maintenance cost.
  5. Dicing thickness is adjustable.
commercial dicer machine
commercial dicer machine

How to change the cutter of vegetable dicing machine

1. First, loosen the pilot wheel, push down the handle, so that the blade group for slicing is released from the comb. Then loosen the shaft end nut, hook the front end groove of the tool with the hook sleeve, remove the blade group, and replace the cutter with the blade group of sizes required.
2. Tighten the shaft end nut and move up the handle to observe whether the transmission gear is clutching with appropriate inside the machine or not.
3. If the transmission gears are clutched well, the handle will be close to the controller, then insert the disc blade of the groove of the electric potato cutter into the comb.
4. When there is no frictionless between the slicer, blades, and comb potato and no clamping stagnation, then fix the handwheel, thus the replacement of the blade of the vegetable dicing machine is accomplished.

The preoccupation of the commercial dicer machine

  1. The material to be cut should be washed,if it is mixed with sand and mud, the blade edge and the blade are easily damaged and blunt them. The maximum cutting diameter should not exceed 80mm. If it is larger than this diameter, it should be cut into small pieces.
  2. Cut the raw material into the required thickness under the force of the dial, then cut into strips by the disc cutter, and finally cut into squares by the cross cutter.
  3. Adjustment of the dicing machine specification: replacing the disc cutter and the cross cutter.
  4. Adjustment of slice thickness: slice thickness can be adjusted to the required thickness by adjusting the plate. First, loosen the fixing bolt of the housing adjustment plate, lift the adjustment plate rotation lever to the required position, then lower the adjustment plate and tighten the fixing bolt to make it fixed.

The malfunction and related solutions of vegetable dicer machine

The transverse cutting length The number of blades
5mm 15 pieces
10mm 8 pieces



Malfunction Reason Solution
The machine is inefficient. V-belt is too loose, slipping when working Tighten the V-belt
The raw material does not fall into the machine. 1. The distance between the comb knife-edge and spacer ring is too wide.

2. The slice thickness is too thick.

1. Re-adjust the comb position so that the comb is close to the surface of the spacer ring.



2. Adjust the slice thickness so that the slice thickness is consistent with the position of the comb.



The raw material can not be fully cut. 1. The direction of rotation of the tray is inconsistent with the specified direction.

2. The comb is clogged.

3. Disc shred combination tool is loosened during operation.

4 The vertical knife is blocked by the raw material.

1. Turn clockwise to adjust the steering wheel

2. Clean the comb.

3. Fastening disc cutting tool

4. Clean up the remaining material at the vertical knife.



How to maintain dicing machine?

1. All maintenance must be performed after the power is turned off. 2. Dicing machine must be cleaned after use, especially the part material passes. 3. After each use, carefully check all cutting tools to avoid damage or bluntness, and check if the comb cutting edge is normal or damaged. Disassemble the combination tool once a week. 4. When reassembling, it must be cleaned with non-toxic and tasteless food oil. Before installation, the food oil must be applied on the cutting shaft to ensure easy operation
