industrial food freezer
industrial food freezer

The industrial food freezer is used to freeze all kinds of food including french fries, meat, meatball, dumplings, wheaten food such as steamed bun, etc. A frozen food freezer can effectively reduce the loss of food juice, inhibit the growth of bacteria, and ensure the taste and safety of food. This freezer uses imported compressors that are efficient, energy-saving, and low noise. The evaporator made of pure copper tube can equalize the temperature in the freezing cabinet and lengthen the preservation time.

At the same time, the intelligent multifunctional temperature control system is able to achieve precise adjustment. What’s more, the industrial food freezer machine is detachable with a universal movable caster on the foot for easy mobility and maintenance.

quick frozen food freezer effect
quick frozen food freezer effect

Technical parameter of different types of industrial food freezer

Model CYSD-1100 L
Number of layers 30 layers
Electrical Specifications / Volt 380
Electrical Specifications / Hertz 50
Limit temperature / °C -45
Refrigerant category R-404A
Condenser Air cooling
French Taikang Compressor 6.5P
Rated power / kW 5.5KW
Shelf size / mm 400*600 Gap:9CM
Inner dimension length, width, height / mm 900*630*1735 The number of layers can be adjusted according to the thickness of product
Dimensions, length, width, height / mm 1637*1150*2068
Pushing car size / mm 900*630*1650MM
Net weight / KG 450



industrial food freezer for freezing fish,bun
industrial food freezer for freezing fish,bun
Model CYLD-178 L
Number of layers 4-6 The number of layers can be adjusted according to the thickness of the product
Electrical Specifications / Volt 220
Electrical Specifications / Hertz 50
Limit temperature / °C -45
Refrigerant category R-404A
Condenser Air cooling
French Taikang Compressor 1.5P
Rated power / kW 1.7
Shelf size / mm 400*600
Inner dimension length, width, height / mm 720*400*600
Dimensions, length, width, height / mm 880*740*1320
Packing size/mm 993*895*1400 Gross weight:160KG
Net weight / KG



130



industrial food freezer inside structure
industrial food freezer inside structure
Model CYLD-300 L
Number of layers 10-11 The number of layers can be adjusted according to the thickness of the product
Electrical Specifications / Volt 220/380
Electrical Specifications / Volt 50
Limit temperature / °C -45
Refrigerant category R-404A
Condenser Air cooling
French Taikang Compressor 3P
Rated power / kW 2.5
Tray size/mm 400*600
Inner dimension length, width, height / mm 570*600*810
Dimensions, length, width, height / mm 800*1136*1614
Packing size/MM 1236*900*1814
Net weight / KG 250

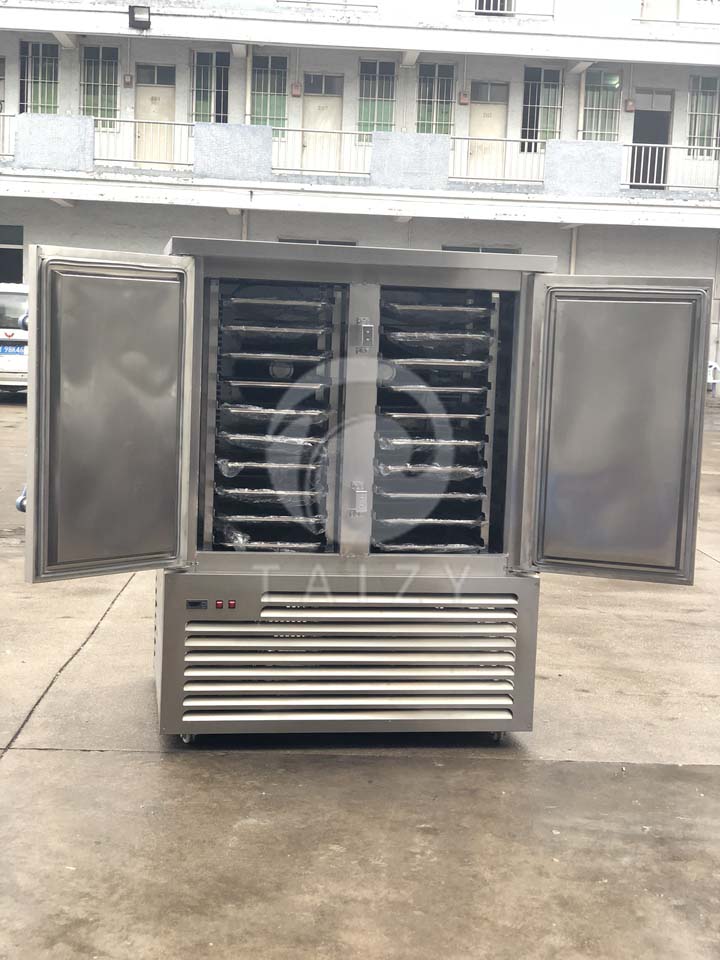

food freezing machine
food freezing machine



Model CYLD-650L
Volume 650L
Number of layers 10*2(double door) The number of layers can be adjusted according to the thickness of the product
Electrical Specifications / Volt 380
Electrical Specifications / Hertz 50
Limit temperature / °C -45
Refrigerant category R-404A
Condenser Air cooling
Compressor 6P
Rated power / kW 5.5KW
Shelf size / mm 400*600
Inner dimension length, width, height / mm 1170*615*1019
Dimensions, length, width, height / mm 1400*1142*1872
Net weight / KG 490
industrial food freezing machine manufacturer
industrial food freezing machine manufacturer
Model CYLD-900 L
Number of layers customized Gap:9CM  15 layers
Electrical Specifications / Volt 380
Electrical Specifications / Hertz 50
Limit temperature / °C -45
Refrigerant category R-404A
Condenser Air cooling
French Taikang Compressor 6p
Rated power / kW 5.5KW
Shelf size / mm 900L 15layers Shelf size :570*630MM

Gap:9CM

Inner dimension length, width, height / mm 790*615*1740 The number of layers can be adjusted according to the thickness of product
Dimensions, length, width, height / mm 1500*1170*2070
Packing size/MM 1620*1270*2150MM
Pushing car packing size / mm 840*1010*980MM Gross weight:43KG
Pushing car size / mm 690*683*1650MM
Net weight / KG 600 Gross weight:650KG



steamed bun freezer
steamed bun freezer

Advantage of quick freezing machine

  1. The quick-freezing machine is made of stainless steel with high corrosion resistance and high density.
  2. The quick-freezing machine uses microelectronic temperature control and a customized fan that is easy to freeze and stop at low temperatures, that is,  -20 ° C ~ -40 ° C.

3. It is equipped with an evaporator and condenser with high efficiency.

  1. the cooling mode is air-cooling, and the cooling effect is fast.

5. The refrigerant is high-efficiency environmentally friendly.

  1. Safe and reliable capacitance running mode.
  2. with the universal wheel, it is easy to move.
freezer application
freezer application

A successful case of industrial food freezer

The industrial food freezer machine is widely applied to the food processing line. Tom from England runs a big meat shop, and he sells a great number of frozen meat to customers, so a quick freezer is an important machine for him. By analyzing his needs, we suggest him a proper freezer, he bought 2 sets for his store. Now he receives the machine and highly praises its stable performance and high working efficiency!

FAQ of quick freezing machine

  1. What’s the raw material of this quick freezer?

The raw material can be all kinds of food such as meat, meatball, dumplings, wheaten food, etc.

  1. What is the range of freezing temperatures?

-20 ° C ~ -40 ° C

  1. What’s the benefit of the industrial food freezer?

It can keep the food fresh, enabling the good taste of food, so it is a very useful machine for home or food industries.
